JHPD-20, Portable Partial Discharge Tester
The instrument adopts ultra-high frequency (UHF) and ultrasonic (AE) detection technology, selects high-performance sensors, and cooperates with optimized hardware and software and structure
UHF and ultrasonic have good response to GIS and partial discharge such as free metal particle discharge, suspended potentiometer discharge, surface discharge, air gap discharge inside insulating parts, metal tip discharge, etc
It is suitable for on-site investigation and use. It is an essential instrument for the operation and maintenance department of substation equipment. It is widely used in power systems and railways
PD signal input level | -80dBm～-20dBm |
frequency range | UHF: 300~ 1500MHz, Noise: 300~ 3000MHz, Ultrasonic: 20~ 200kHz |
sensitivity | UHF: built-in sensor ≤ 3pC, external sensor ≤ 5pC; ultrasonic: ≤ 40dB |
synchronous voltage input level | 250V (maximum) |
External synchronous output level | 0~ 3V (peak) |
Number of channels | UHF, ultrasonic can be measured simultaneously or individually |
Related recommendations
JHRX series, infrared thermal imaging cameras
Expert-level native analysis capabilities assist in diagnosing equipment status

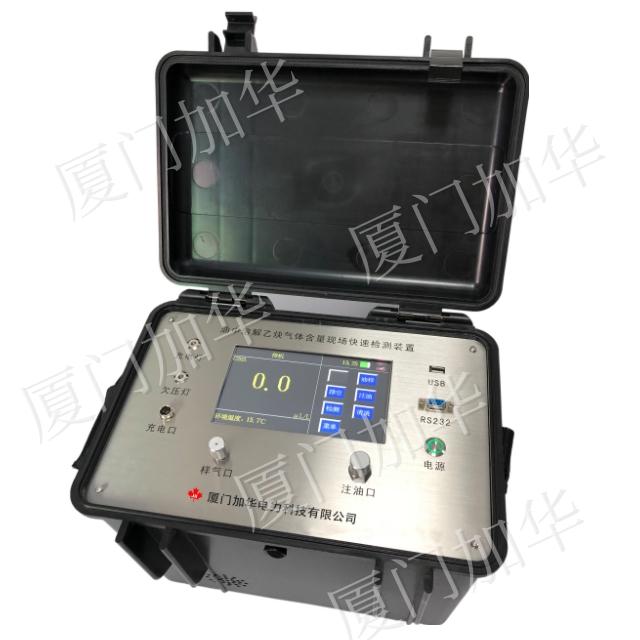

JHYQ-1 Rapid Detector for Dissolved Gas Acetylene in Oil
